The AE.1, by the Numbers
A closer look at the systems, dimensions, and performance that define the AE.1.
- 77 kWh Battery Size
- 7,200 Dry Weight
- Up to 1.8 kW Solar
- Standard AE.1 Home Backup
Main Specs

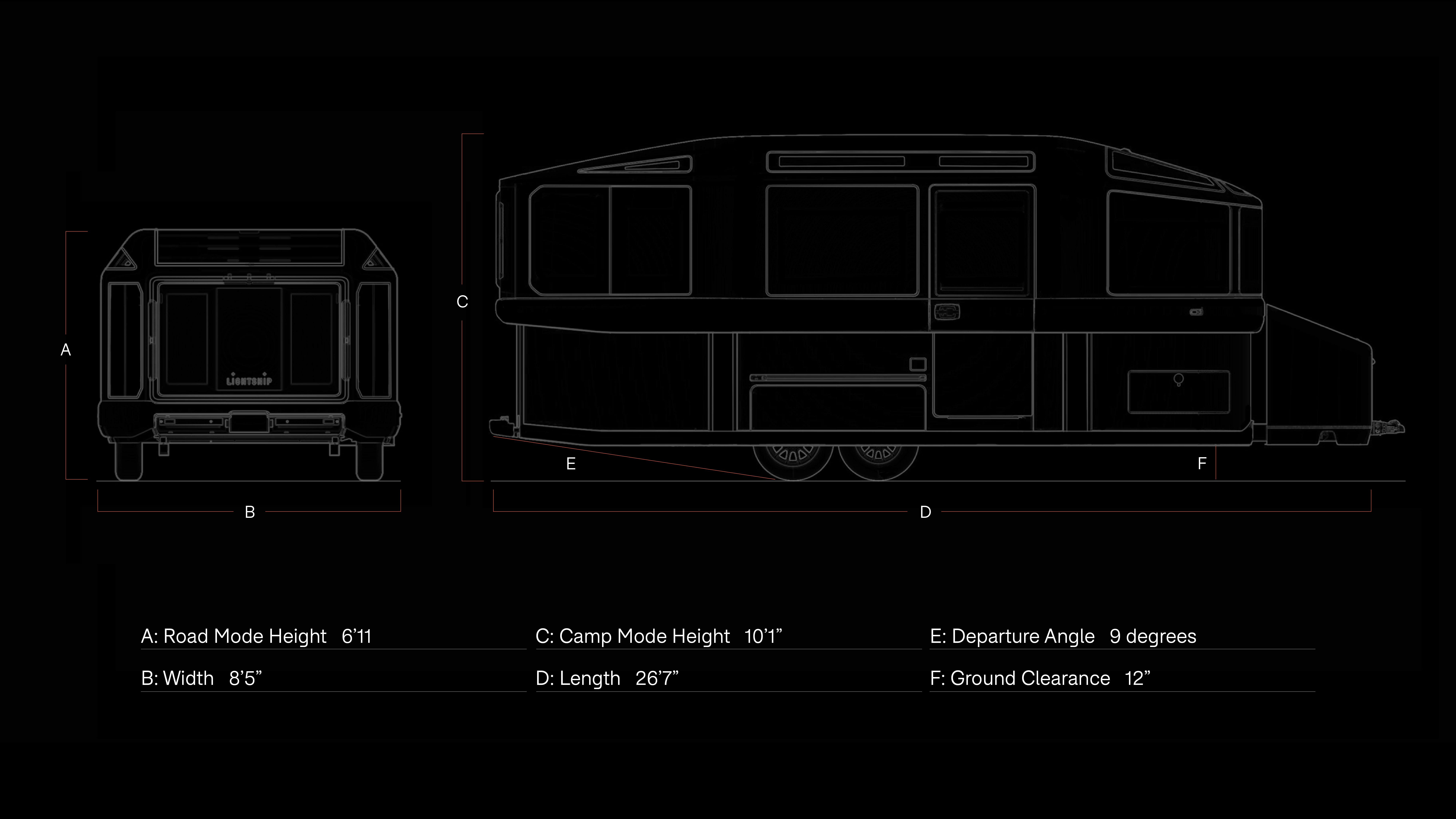

Exterior & Footprint
- Length w/ AeroHub 26' 7"
- Exterior Width 8' 5"
- Exterior height (Road Mode) 6' 11"
- Exterior height (Camp Mode) 10' 1"
- Interior length 22' 7"
- Interior height 7' 5"
- Interior width 7' 4"
- Ground clearance 12"
- Departure angle 9 degrees
- Axles 2
- Wheel base 30"
- Dry Weight 7,550 lbs
- GVWR 8400 lbs
- Cargo Weight 850 lbs
The Electric Ecosystem
- Battery Capacity 77 kWh
- Solar Array 670 W
- Charging Standard NACS
- Max Charging Speed 155 kW
- Charging time (155 kW) 1 hour
- Home Backup Power 10 kW
- Backup Camera Standard
Living Spaces
- Sleep Capacity Up to 4 adults comfortably.
- Kitchen intuitive and efficient, combining a dual induction cooktop and microwave convection oven with generous counter space on one side and a custom sink with even more workspace on the other, plus ample drawers and storage to keep essentials organized for meal prep and cleanup.
- Bathroom Built with durable, quick-drying, easy-to-clean materials, the bathroom uses a space-saving layout where the shower, sink, and toilet work together to maximize room, with the option to keep the space open for rinsing off kids or a dog or to block off the sink and toilet to keep them dry, resulting in a bathroom that feels unusually spacious for a trailer this size.
- Windows 270-degree panoramic views combine shatter-resistant polycarbonate and automotive safety glass. Every large window includes blackout curtains, and the opening windows feature line-tracked bug screens.
- Materials Interior materials strike a balance of durability, longevity and a more thoughtful footprint, pairing Polygood bathroom countertops made from 100% recycled polystyrene with BYBORRE 3D-knit upholstery that blends recycled polyester and wool for comfort and natural odor resistance, plus counter surfaces featuring a self-healing finish for long-lasting wear.
- AiRight Climate Control AirRight is an integrated split heat pump system that delivers heating and air conditioning at 20,000 BTUs and 500 CFM, with airflow routed through a wraparound seat-back vent for precise, even climate control throughout the cabin.
- Water Tanks (Fresh/Grey/Black) 50 / 35 / 30 gallons
Bundle Options
TrekDrive
- Details TrekDrive combines an onboard electric drive module on the rear axle with an intelligent hitch to respond instantly to acceleration, braking, and grades, delivering a calmer tow and up to double the range and efficiency.
Solar+
- Details Solar+ nearly triples the solar to 1.8 kW on your AE.1, for faster daytime replenishment and stronger off-grid self-sufficiency.
Effortless Package
- 5.3 Auto Leveling System Equips the AE.1 with a powered tongue jack, two leveling jacks, and one powered c-jack. Auto-level with one-tap in the Atlas tablet or utilize the easy-to-read, interactive touch screen to operate all leveling jacks and stabilizers manually or just press OK and walk away.
- Motorize Awning The 10-foot Girard GG 750 is a compact lateral-arm motorize awning with an integrated full-length LED light strip. Control it directly from the Atlas tablet or manually.
- Trailer Valet RVR9 The Trailer Valet RVR9 delivers precise, effortless maneuvering with a 9,000 lb towing capacity. Outfitted with four high-torque motors, heavy-duty tracks, a rechargeable lithium-ion battery, a wireless remote, and large traction ridges to reduce slip when maneuvering RVs, boats and more.
Elevated Living Package
- Dishwasher An integrated, drawer-style dishwasher with Knock to Pause, multiple wash programs (including Quick and Sanitize), and quiet performance. Proven to consume less water than washing dishes by hand.
- Multi-Stage Water Filtration Two-stage inline RV water filtration system with hospital-grade 0.2-micron “absolute” filtration and a 4.5 GPM flow rate for cleaner, better-tasting water
- Four-layer Memory Foam Mattress Dual phase-change, quick-recovery memory foam mattress that resists sinking and bottoming out, providing a cooler feel, exceptional pressure relief, and premium support.
- 4K UHD Projector and Screen Ultra-portable 4K UHD smart projector with built-in Google TV and Bose sound, delivering up to 1,000 lumens and paired with an included 80-inch retractable screen.
- Deployable Exterior Light Telescoping, tripod-mounted area light that extends to 10 ft, delivers up to 2,000 lumens, and lights an 80-ft diameter area with app-controlled white, amber, and red modes for camp, driveway, or emergency lighting
Summit Sleeper
- Details Ceiling-mounted bed that lowers in seconds via the Atlas Tablet and includes an integrated LED light, and a tuckaway ladder with support struts for secure setup.
- Length 78"
- Width 39"
- Height 29"
- Weight Capacity 300 lbs
